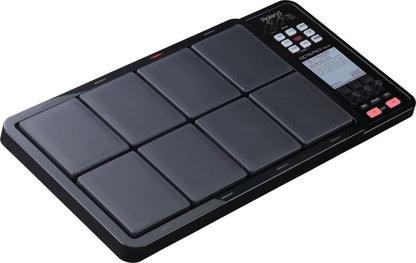

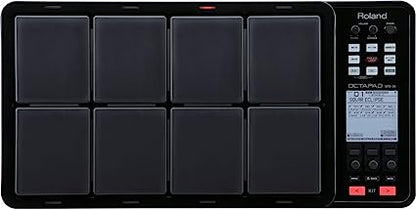

Roland Octapad SPD-30 - Black

Roland's powerful Octapad drum controller makes a great drum/percussion instrument on its own, and its versatility makes it an essential for both electronic and acoustic drummers! Loaded with over 670 instruments arranged in 50 kits (plus effects), the Octapad features eight large touch-sensitive pads, an easy-to-use interface, a hi-hat controller, a Phrase Loop function, and USB connectivity. Trigger inputs allow you to use it with acoustic drums, or you can stand mount the Octapad and use it to augment your kit in the studio or onstage.

• Pads Built-in Pads: 8 * Four external trigger inputs are provided, allowing you to connect Pads.
• Instruments 670
• Kits 50
• Kit Chain 8 chains (20 steps per chain)
• Instrument Parameters
• Tuning
• Muffling
• Soft Attack
• Tone Color
• Pitch Sweep
• Volume
• Pan
• Reverse
• Effect Types Ambience (7 Types), Equalizer, Limiter, Multi Effect (30 Types)
• Phrase Loop
• Phrases: 50
• Parts: 3
• Tempo: 40 to 260
• Resolution: 480 ticks per quarter note
• Recording Method: Real-time
• Maximum Note Storage: approx. 10,000 Notes
• Display
• 160 x 160 dots Graphic Type LCD (Backlit LCD)
• Pad Status Illumination x 8 (LED)
• Connectors
• PHONES Jack (Stereo 1/4 inch phone type)
• OUTPUT Jacks (L (MONO), R) (1/4 inch phone type)
• MIX IN Jack (Stereo 1/4 inch phone type)
• EXTERNAL TRIGGER INPUT Jacks x 4
• HH CTRL Jack, FOOT SW Jack (1/4 inch TRS phone type)
• MIDI Connectors (IN, OUT)
• USB MEMORY Connector (for USB Memory)
• USB MIDI Connector (for USB MIDI)
• Output Impedance 1.0 k ohms
• Power Supply AC Adaptor (DC 9 V)
• Current Draw 600 mA
• Accessories
• Owner's Manual
• AC Adaptor (PSB-1U)
• Screws (M5 x 12 mm) x 4
• Options
• Pads (PD series, PDX series, BT-1)
• Cymbals (CY series)
• Kick Triggers (KD series)
• Hi-Hats (VH-11)
• Hi-Hat Control Pedal (FD series)
• Pad Stand (PDS-10)
• All-Purpose Clamp (APC-33)
• Acoustic Drum Trigger (RT-30H, RT-30HR, RT-30K)
• Pedal Switch (DP-2)
• Foot Switch (FS-5U, FS-6)
• Personal Drum Monitor: PM-10, PM-30
• V-Drums Accessory Package: DAP-3
• V-Drums Mat: TDM-10
• USB memory
• * Use USB memory sold by Roland. We cannot guarantee operation if other
• products are used.
• SIZE AND WEIGHT
• Width
• 541 mm
• 21-5/16 inches
• Depth
• 272 mm
• 10-3/4 inches
• Height
• 88 mm
• 3-1/2 inches
• Weight
• 3.8 kg
• 8 lbs. 7 oz.
