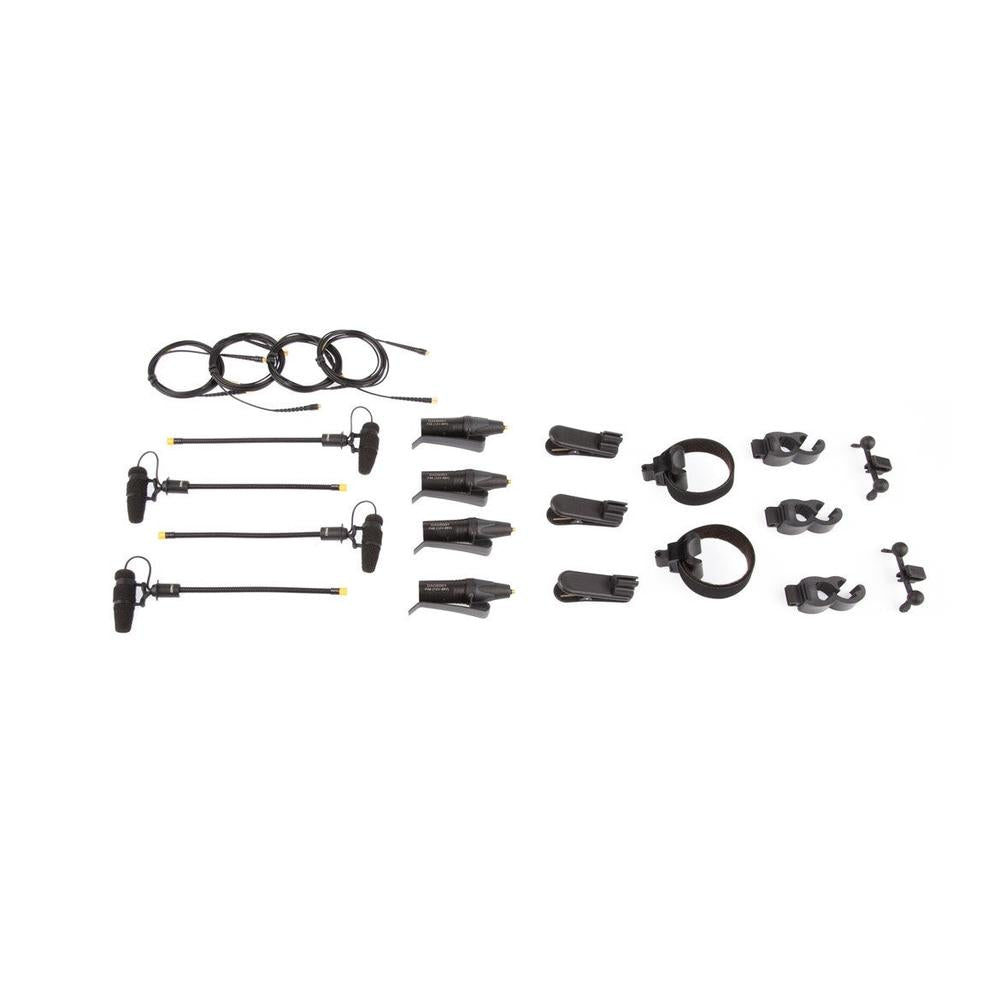

DPA Microphones 4099 Core Rock Touring Kit

The 4099 Instrument Microphone is already the recognized standard for this type of microphone and the CORE version adds just another layer of sound quality that further distances this mic from its competitors. The 4099 brings more clarity and details to your music, across the entire dynamic range. Anyone looking for the very highest sound quality should choose CORE by DPA – every musician, live sound engineer and anyone else who takes pride in quality audio.

·        Directional pattern: Supercardioid

·        Principle of operation: Pressure gradient

·        Cartridge type: Pre-polarized condenser

·        Frequency response: 20 Hz - 20 kHz

·        Effective frequency range ±2 dB, at 20 cm (7.9 in): 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz

·        Sensitivity, nominal, ±3 dB at 1 kHz: 2 mV/Pa; -54 dB re. 1 V/Pa

·        Equivalent noise level, A-weighted: Typ. 28 dB(A) re. 20 μPa (max. 31 dB(A))

·        Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peak

·        Dynamic range: Typ. 109 dB

·        Max. SPL, THD 10%: 152 dB SPL peak

·        Rated output impedance: From MicroDot: 30 - 40 Ω. From DAD4099-BC or DAD6001-BC: 100 Ω

·        Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC/DAD4099-BC XLR Adapter

·        Output balance principle: Signal balanced with DAD4099-BC or DAD6001-BC XLR Adapter

·        Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR Adapter

·        Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter. With DAD6001-BC or DAD4099-BC: P48 (Phantom Power). Will work from 12 V

·        Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC or DAD6001-BC XLR Adapter

·        Connector: MicroDot

·        Weight: Microphone: 17 g (0.60 oz)

o   Instrument Microphone Clamp Mount (CM4099): 16 g (0.56 oz)

o   Instrument Microphone Clip for Accordion (AC4099): 5 g (0.18 oz)

o   Instrument Microphone Clip for Bass (BC4099): 20 g (0.71 oz)

o   Instrument Microphone Clip for Cello (CC4099): 13 g (0.46 oz)

o   Instrument Microphone Clip for Drum (DC4099): 13 g (0.46 oz)

o   Instrument Microphone Clip for Guitar (GC4099): 12 g (0.42 oz)

o   Instrument Microphone Clip for Piano (PC4099): 19 g (0.67 oz)

o   Instrument Microphone Clip for Sax and Trumpet (STC4099): 7 g (0.25 oz)

o   Instrument Microphone Clip for Violin and Mandolin (VC4099): 10 g (0.35 oz)

o   Universal Instrument Microphone Clip (UC4099): 15 g (0.53 oz)

o   Mic Stand Mount for Instrument Microphone (MS4099): 28 g (0.99 oz)

o   Cold Shoe Mount with standard 1/4" in thread (CS4099): 5 g (0.18 oz)

·        Microphone diameter: 5.7 mm (0.22 in)

·        Microphone length: 45 mm (1.8 in)

·        Cable length: 1.8 m (5.9 ft)

·        Cable diameter: 1.6 mm (0.06 in) / 2.2 mm (0.09 in)

·        Polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter)

·        Temperature range: -40°C to 45°C (-40°F to 113°F)

·        Relative humidity (RH): Up to 90%

·        Gooseneck length: 140 mm (5.5 in)
